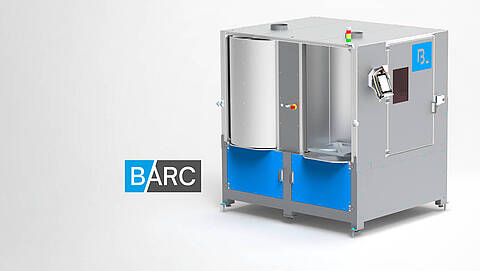

      Robotic welding cell B.ARC

      Compact solution for your needs

      The B.ARC flexible robotic cell is a compact solution for small to medium volume welding applications.

      The B.ARC contains two welding tables, completely independent of each other for safety reasons, thus significantly reducing the time of the entire welding process. While the robot is welding on one table, the operator can weld on the other table without compromising cell safety. In addition, the operator does not need to have protective goggles. The movement of the drum door is fully automatic, so the operator can easily tell if the welding process is complete.

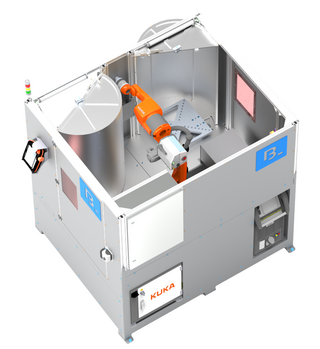

      One of the other advantages of our solution is the compactness of the entire structure, which is self-supporting. The cell can thus be easily transported by forklift truck. The sheet metal enclosure of the robotic cell is fitted with safety visors on the sides. These inspection windows are used to control the process and to simplify the work of the programmer (e.g. when the robot tracks are being driven).

      Design changes can be made by mutual agreement, according to customer preferences.

      What does the B.ARC solution offer?

      • The cell contains two safely separated welding tables
      • Single operator operation
      • The movement of the revolving door is automatic
      • Fixture clamping with repeatable accuracy of -+0.02mm
      • KUKA KRC5 control system
      • Detailed diagnostics of actuators via graphical interface
      • Service monitoring possible via remote management
      • Power distribution box included in the cell
      • Electrical equipment of the table - Harting 16PIN connector
      • Connection of fixtures to pressurized air via low-pressure quick coupler
      • Basic welded steel construction made of 120x80x5 profiles
      • Safety superstructure made of ITEM profiles
      • Workplace status indication by means of a signal beacon
      • Extraction preparation above each table
      • The equipment complies with the following EN ISO standards: ČSN EN ISO 12100, ČSN EN ISO 13849-1, ČSN EN ISO 14119, ČSN EN ISO 14120, ČSN EN ISO 13857, ČSN EN ISO 18855, ČSN EN ISO 60204-1 ed.3

      Technical specification

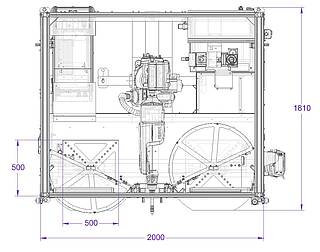

      Dimensions (W × D × H)

      2 × 1,8 × 2,1 m
      Weight (without welding unit)

      2 000 kg
      Robot type

      Kuka KR 8 R1440-2 arc HW
      Control system

      Kuka KRC 5
      Clamping tables (2 pcs)

      500 x 500 mm
      Maximum table load

      50 kg
      Handling door Automatic with safety impact bar
      Welding unit According to customer's requirement
      Communication

      ProfiNet, EtherCat
      Power supply

      3NPE~50Hz 400V/TN-S, cable 5x10mm, fuse 3x50A
